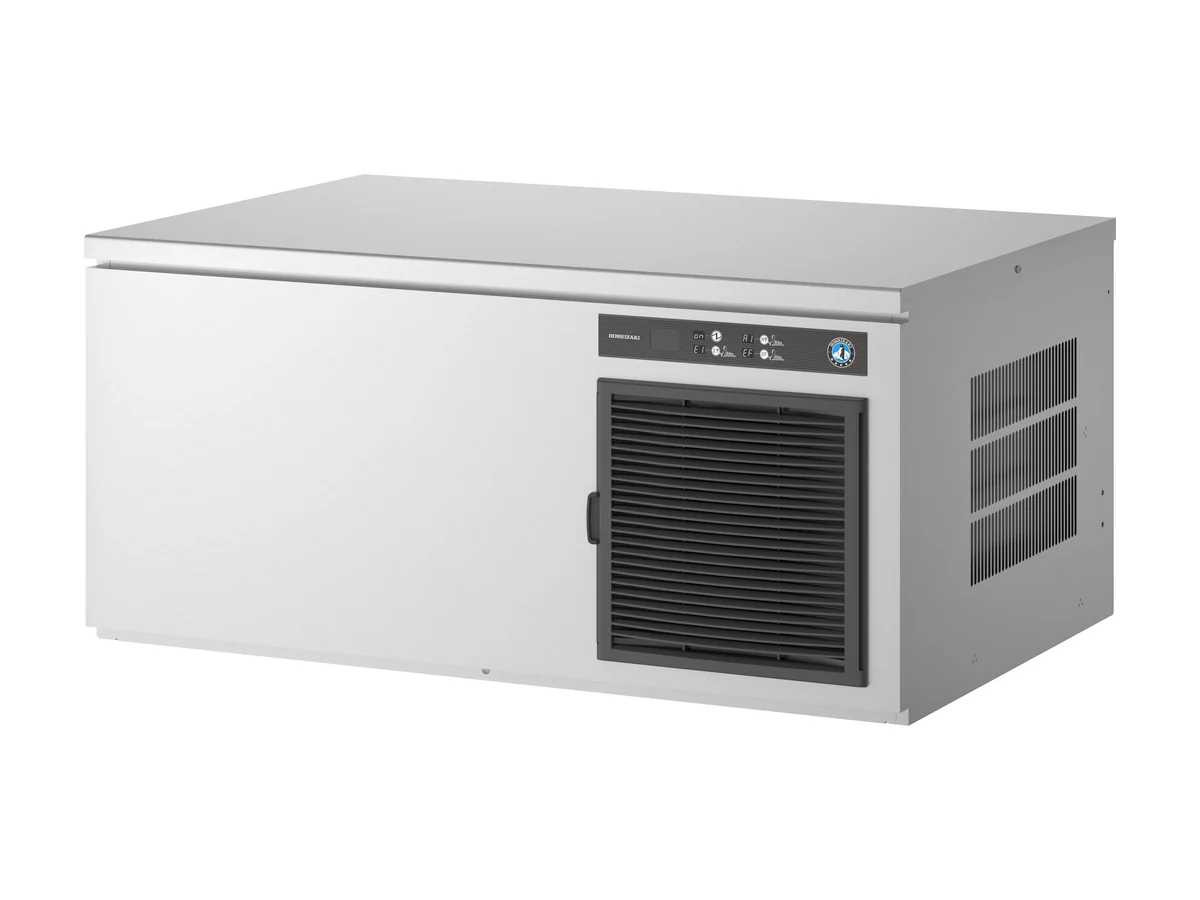

Hoshizaki Cylinder Ice Maker IM-240DNE-HC-C – Modular & Stackable, Air-cooled, 190 kg/24h
The Hoshizaki IM-240DNE-HC-C makes 190 kg of cylinder ice a day (modular & stackable, air-cooled). Data, manuals and marine quotation.
| Manufacturer | Hoshizaki |
|---|---|
| Model | IM-240DNE-HC-C |
| Product type | Cylinder Ice Maker |
| Series | IM series |
| Configuration | Modular & Stackable |
Hoshizaki Cylinder Ice Maker IM-240DNE-HC-C Overview

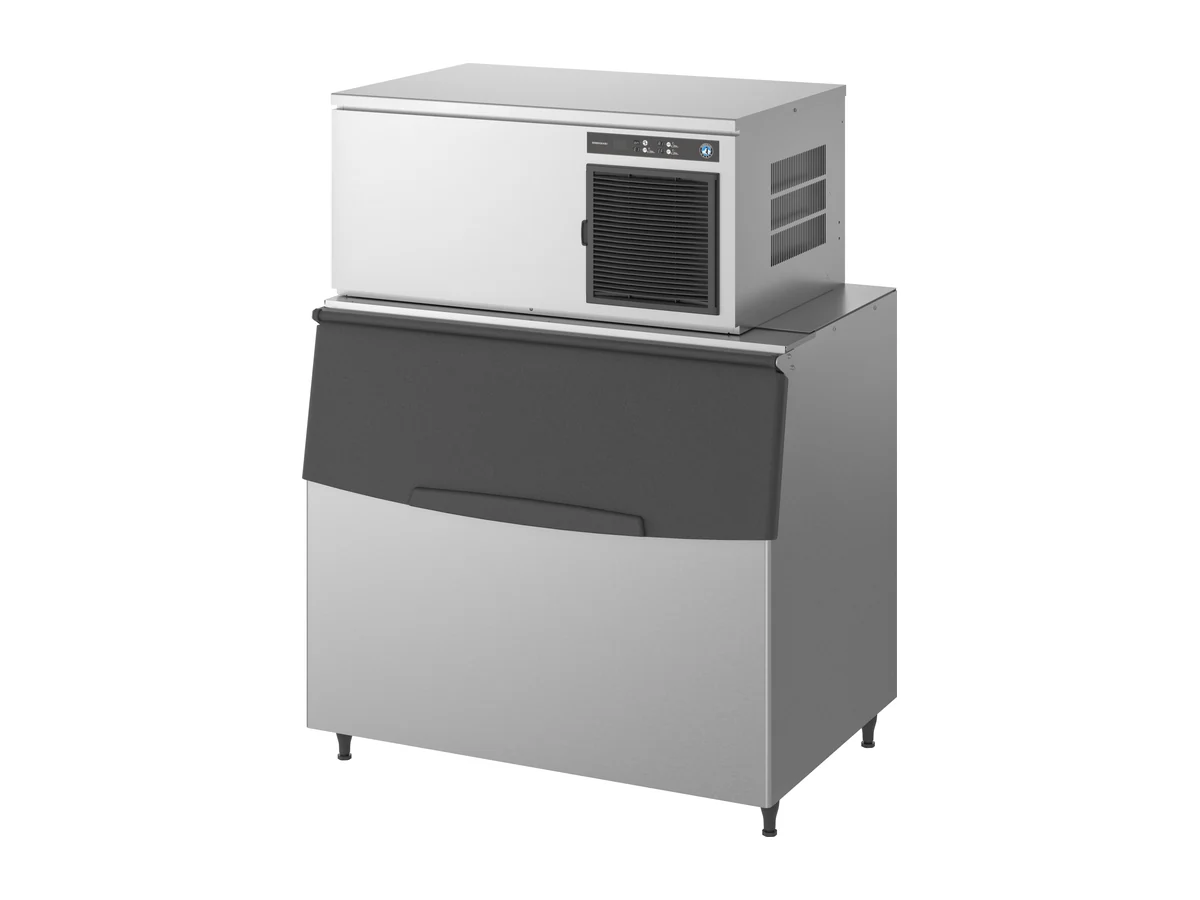

Hoshizaki rates the modular IM-240DNE-HC-C at 190 kg of cylinder ice per 24 hours, and you pair it with a storage bin sized to the ice needed at the start of service (Hoshizaki lists the B-340SB, F-1025-52S, F-650-44S, F-950-48S). Averaged out, the machine turns out about 7.9 kg an hour.
Specs worth checking
Footprint is 1,084 x 700 mm with a height of 500 mm; net weight is 85 kg. Electrically it needs single-phase 220-240 V 50 Hz, drawing 0.93 kW, within ±6%, on a 5 A breaker. At 32 °C room temperature it releases 2.33 kW of heat. Water consumption comes to 520 liters per 24 hours, or roughly 2.7 liters for every kilo of ice. Inside the IM-240DNE-HC-C is a 147 g R290 charge, and R290 is propane rated A3 for flammability.
Installation notes
Operating limits for the IM-240DNE-HC-C are 1 to 40 °C ambient, 5 to 35 °C water and 0.7 to 8 bar, so check the space and the fresh water line against those. The condenser blows about 2.33 kW of warm air into the room, which a bar with poor ventilation will notice. Pair it with a 4HC-H twin filter; at 190 kg a day that is the size Hoshizaki specifies. Top kits Hoshizaki lists for the IM-240DNE-HC-C: TK-48 for B-340SB (optional, not required), TK-IMD2 for B-340SB. Send us the supply details and where the IM-240DNE-HC-C will stand and we will confirm the rest with Hoshizaki.
Key features of the IM-240DNE-HC-C
- 190 kg of cylinder ice per 24 hours
- Air-cooled condenser
- R290 refrigerant
- Exterior: Stainless Steel AISI 441
- Accessories included: brace, Installation kit, Scoop
- Compatible bins: B-340SB, F-1025-52S, F-650-44S, F-950-48S
IM-240DNE-HC-C technical specifications
| Manufacturer | Hoshizaki |
|---|---|
| Model | IM-240DNE-HC-C |
| Product type | Cylinder Ice Maker |
| Series | IM series |
| Configuration | Modular & Stackable |
| Manufacturer item number | M071-D122 |
| Country of origin | UK |
| Accessories included | brace, Installation kit, Scoop |
| Compatible water filters | 4HC-H Twin Water Filter, 4HC Replacement Cartridge |
| Width | 1084 mm |
| Width (packed) | 1196 mm |
| Depth | 700 mm |
| Depth (packed) | 825 mm |
| Height | 500 mm |
| Height (packed) | 640 mm |
| Volume (packed) | 0.6315 m³ |
| Electrical consumption | 0.93 kW |
| Energy consumption | 0.93 kWh |
| Ambient temperature (maximum) | 40 °C |
| Ambient temperature (minimum) | 1 °C |
| Voltage tolerance | ±6% |
| Water supply pressure (maximum) | 0,8MPa (8 bar) |
| Water supply pressure (minimum) | 0,07MPa (0.7 bar) |
| Water supply temperature (maximum) | 35 °C |
| Water supply temperature (minimum) | 5 °C |
| Electrical circuit breaker protection | 5 A |
| Exterior | Stainless Steel AISI 441 |
| Gross weight | 99 kg |
| Net weight | 85 kg |
| Heat rejection (AT 32 °C, WT 21 °C) | 2.33 kW |
| Power supply | 1/220 - 240V/50Hz |
| Volume, gross | 0.631 l |
| Cooling system | Air Cooled |
| Ice type | Cylinder |
| Ice production (kg/24h) | 190 kg |
| Water consumption (m³/24h) | 0.52 m³ |
| Compatible storage bins | B-340SB, F-1025-52S, F-650-44S, F-950-48S |
| CO2 equivalent | 0.441 kg |
| GWP | 3 GWP |
| Refrigerant charge | 147 g |
| Refrigerant type | R290 |
| Top kits | TK-48 for B-340SB (optional, not required), TK-IMD2 for B-340SB |
| Note | This type of icemaker is on special order only. Please take longer lead times into consideration. |
Also listed under
Questions about the IM-240DNE-HC-C
How much ice does the IM-240DNE-HC-C make per day?
Up to 190 kg of cylinder ice in 24 hours, about 7.9 kg an hour. Real output drops as room and water temperatures rise.
How is the IM-240DNE-HC-C cooled?
It is air-cooled.
What water supply does the IM-240DNE-HC-C need?
Water at 5 to 35 °C and 0.7 to 8 bar, with the 4HC-H twin filter system.
Where the IM-240DNE-HC-C is used
Hoshizaki, manufacturer of the IM-240DNE-HC-C
Hoshizaki: Japanese maker of commercial ice machines, supplied through Hoshizaki Europe with cube, crescent, flake, nugget, cylinder and ball ice makers, ice and water dispensers and sushi display cases. Configured to order — tell us the vessel and the supply voltage and frequency, and we will quote the correct build.
All Hoshizaki equipmentManuals and documents for the IM-240DNE-HC-C
Documents are published by the manufacturer for the standard model. We confirm the build, supply and installation details for your vessel with the quotation.
