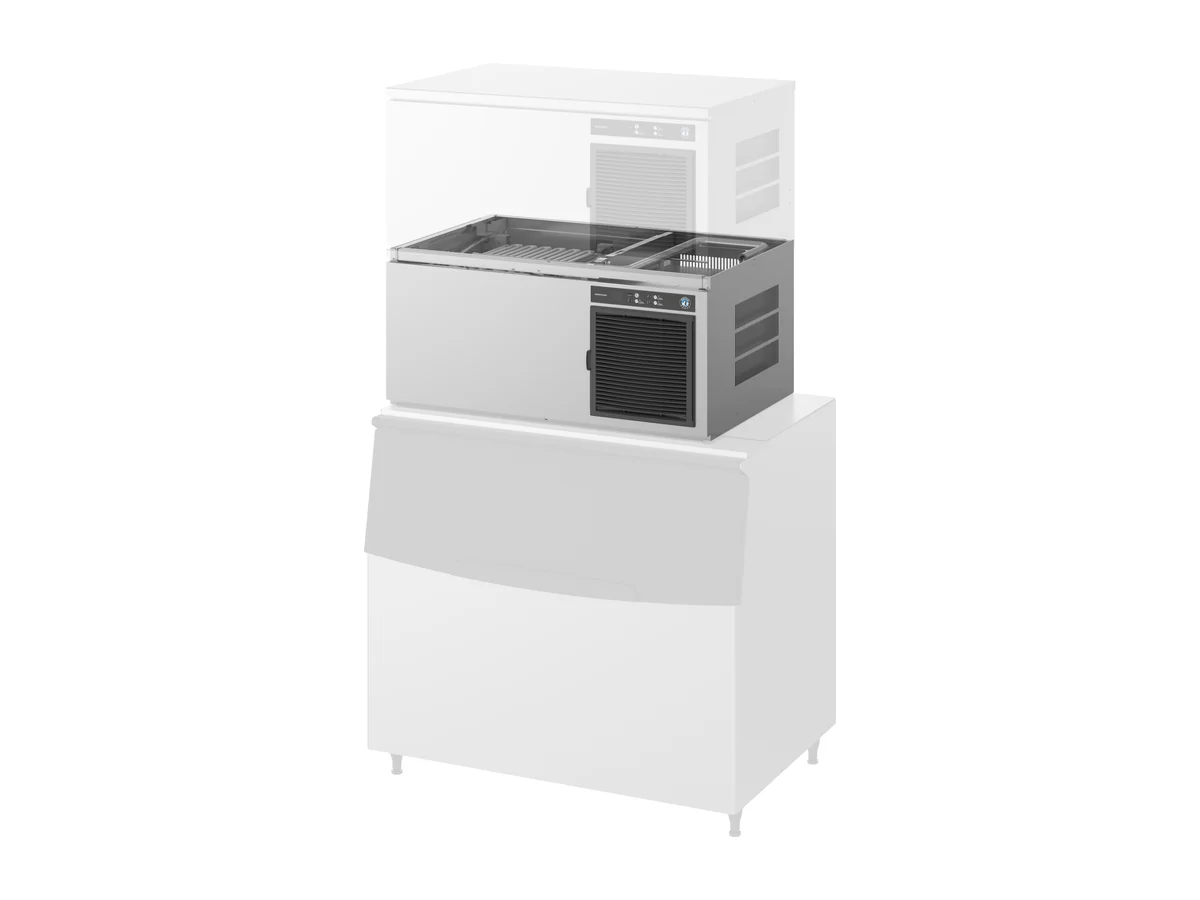

Hoshizaki Cylinder Ice Maker IM-240XNE-HC-C – Modular & Stackable Extension, Air-cooled, 190 kg/24h

The Hoshizaki IM-240XNE-HC-C is a modular, stackable air-cooled cylinder ice maker extension unit producing up to 190 kg of cylinder ice in 24 hours. As a modular head it has no bin of its own and sits on a separate storage bin: Hoshizaki pairs the IM-240XNE-HC-C with the B-340SB, F-1025-52S, F-650-44S, F-950-48S; top kits: TK-48 for B-340SB (optional, not required), TK-IMD2 for B-340SB. As the extension unit it is stacked on a base unit of the same series to add production over one bin. Hoshizaki Europe's product index marks the IM-240XNE-HC-C as no longer available; it is on the Hoshizaki 2026 export price list, and we confirm availability when quoting.

Technical data

The IM-240XNE-HC-C measures 1,084 × 700 × 500 mm (W × D × H) and weighs 85 kg net. Electrical consumption is 0.93 kW and heat rejection 2.33 kW at 32 °C ambient and 21 °C water, with 0.52 m³ of water used per 24 hours. The IM-240XNE-HC-C runs on 147 g of R290, GWP 3. R290 is a natural refrigerant classified A3, higher flammability, so the charge belongs in the installation specification. Electrically the IM-240XNE-HC-C is rated for single phase 220-240 V 50 Hz, with a voltage tolerance of ±6% and a 5 A circuit breaker.

Marine installation

Hoshizaki gives operating limits of ambient temperatures from 1 to 40 °C, water supply temperatures from 5 to 35 °C and water pressure from 0.7 to 8 bar, which is what the space and the vessel's fresh water system have to meet for the IM-240XNE-HC-C. Being air-cooled, it rejects its heat into the space, so the ventilation of the galley or bar has to take it. For water treatment Hoshizaki pairs it with the 4HC-H twin water filter system and its 4HC replacement cartridges. On a vessel the IM-240XNE-HC-C is specified like any galley appliance: supply voltage and frequency, water inlet and drain, ventilation and fixing. This page carries Hoshizaki's published data for the standard model, and we confirm the marine installation details with the quotation.

Send us the vessel type, the supply voltage and frequency and where the IM-240XNE-HC-C will stand, and we will quote it with the matching water filter and storage bin.
