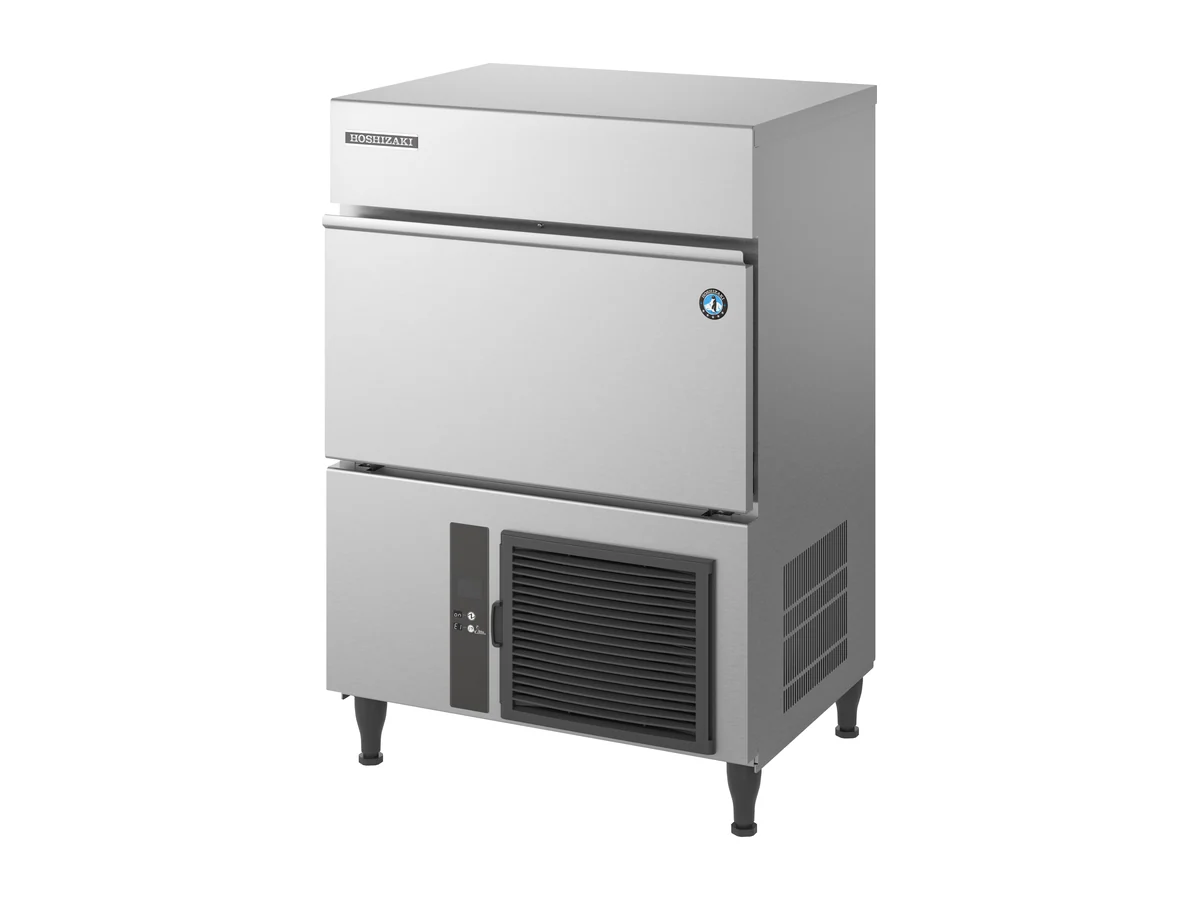

Hoshizaki Cylinder Ice Maker IM-65NE-HC-C – Self-Contained, Air-cooled, 56 kg/24h
The Hoshizaki IM-65NE-HC-C makes 56 kg of cylinder ice a day (self-contained, air-cooled, 26 kg bin). Data, manuals and marine quotation.
| Manufacturer | Hoshizaki |
|---|---|
| Model | IM-65NE-HC-C |
| Product type | Cylinder Ice Maker |
| Series | IM series |
| Configuration | Self-Contained |
Hoshizaki Cylinder Ice Maker IM-65NE-HC-C Overview
Up to 56 kg of cylinder ice every 24 hours, with a 26 kg bin built into the cabinet: that is the short version of the Hoshizaki IM-65NE-HC-C. Averaged out, the machine turns out about 2.3 kg an hour. An empty 26 kg bin fills in roughly 11 hours at that rate.
In numbers
The cabinet is 633 mm wide, 506 mm deep and 840 mm tall before legs (add 90-125 mm), and weighs 51 kg. It draws 0.32 kW from a single-phase 220-240 V 50 Hz supply, within ±6%, on a 5 A breaker. Heat released into the room is 0.81 kW at 32 °C ambient. Daily water use is 350 liters, or roughly 6.2 liters for every kilo of ice. Refrigerant is 105 g of flammable R290 (A3), a figure the yard or class surveyor will ask for.
On board
The IM-65NE-HC-C is rated for rooms at 1 to 40 °C, with feed water between 5 and 35 °C at 0.7 to 8 bar. Expect roughly 0.81 kW of extra heat in the room from this air-cooled unit. Hoshizaki matches the IM-65NE-HC-C with the 4HC-H single filter system. Supply, water and fixing for the IM-65NE-HC-C are confirmed per vessel when we quote, since the figures above describe Hoshizaki's standard build.
Key features of the IM-65NE-HC-C
- 56 kg of cylinder ice per 24 hours
- 26 kg built-in storage bin
- Air-cooled condenser
- R290 refrigerant
- Exterior: Stainless steel AISI 441, Galvanized steel (Rear)
- Accessories included: Installation kit, Legs, Scoop
IM-65NE-HC-C technical specifications
| Manufacturer | Hoshizaki |
|---|---|
| Model | IM-65NE-HC-C |
| Product type | Cylinder Ice Maker |
| Series | IM series |
| Configuration | Self-Contained |
| Manufacturer item number | M066-D011 |
| Country of origin | UK |
| Accessories included | Installation kit, Legs, Scoop |
| Compatible water filters | 4HC-H Single Water Filter, 4HC Replacement Cartridge |
| Width | 633 mm |
| Width (packed) | 735 mm |
| Depth | 506 mm |
| Depth (packed) | 570 mm |
| Height | 840 mm |
| Height (packed) | 1012 mm |
| Volume (packed) | 0.424 m³ |
| Legs | for legs add 90-125 mm |
| Electrical consumption | 0.32 kW |
| Energy consumption | 0.32 kWh |
| Ambient temperature (maximum) | 40 °C |
| Ambient temperature (minimum) | 1 °C |
| Voltage tolerance | ±6% |
| Water supply pressure (maximum) | 0.8MPa (8 bar) |
| Water supply pressure (minimum) | 0,07MPa (0.7 bar) |
| Water supply temperature (maximum) | 35 °C |
| Water supply temperature (minimum) | 5 °C |
| Electrical circuit breaker protection | 5 A |
| Exterior | Stainless steel AISI 441, Galvanized steel (Rear) |
| Gross weight | 61 kg |
| Net weight | 51 kg |
| Heat rejection (AT 32 °C, WT 21 °C) | 0.815 kW |
| Power supply | 1/220 - 240V/50Hz |
| Storage bin capacity | 26 kg |
| Volume, gross | 0.424 l |
| Cooling system | Air Cooled |
| Ice type | Cylinder |
| Ice production (kg/24h) | 56 kg |
| Water consumption (m³/24h) | 0.35 m³ |
| CO2 equivalent | 0.315 kg |
| GWP | 3 GWP |
| Refrigerant charge | 105 g |
| Refrigerant type | R290 |
| Note | This type of icemaker is on special order only. Please take longer lead times into consideration. |
Also listed under
Questions about the IM-65NE-HC-C
How much ice does the IM-65NE-HC-C make per day?
Up to 56 kg of cylinder ice in 24 hours, about 2.3 kg an hour. Real output drops as room and water temperatures rise.
How is the IM-65NE-HC-C cooled?
It is air-cooled.
What water supply does the IM-65NE-HC-C need?
Water at 5 to 35 °C and 0.7 to 8 bar, with the 4HC-H single filter system.
Where the IM-65NE-HC-C is used
Hoshizaki, manufacturer of the IM-65NE-HC-C
Hoshizaki: Japanese maker of commercial ice machines, supplied through Hoshizaki Europe with cube, crescent, flake, nugget, cylinder and ball ice makers, ice and water dispensers and sushi display cases. Configured to order — tell us the vessel and the supply voltage and frequency, and we will quote the correct build.
All Hoshizaki equipmentManuals and documents for the IM-65NE-HC-C
Documents are published by the manufacturer for the standard model. We confirm the build, supply and installation details for your vessel with the quotation.
