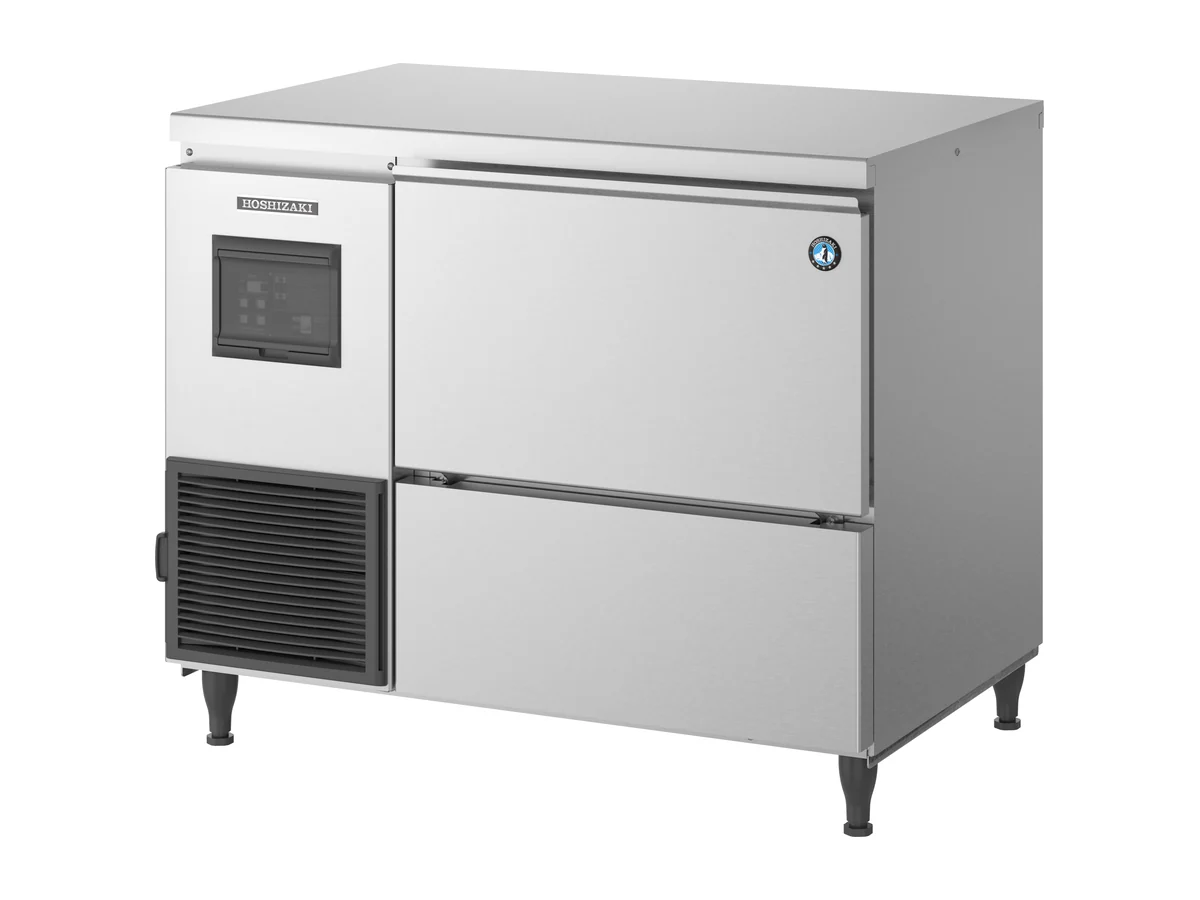

Hoshizaki Flake Ice Maker FM-120KE-50-HC – Self-Contained, Air-cooled, 125 kg/24h
Hoshizaki FM-120KE-50-HC: self-contained air-cooled flake ice maker, 125 kg a day with a 57 kg bin. Specs, manuals and quotes for ships and yachts.
| Manufacturer | Hoshizaki |
|---|---|
| Model | FM-120KE-50-HC |
| Product type | Flake Ice Maker |
| Series | FM series |
| Configuration | Self-Contained |
Hoshizaki Flake Ice Maker FM-120KE-50-HC Overview
Hoshizaki rates the FM-120KE-50-HC at 125 kg of flake ice per day. The ice drops into a 57 kg bin inside the same air-cooled cabinet. That works out to roughly 5.2 kg an hour. From empty, its 57 kg bin takes about 11 hours to fill.
Technical details
It measures 940 x 600 x 800 mm (W x D x H) before legs (including legs at 89 mm) and weighs 76 kg empty. It draws 0.355 kW from a single-phase 220-240 V 50 Hz supply, within ±6%, on a 6 A breaker. Heat released into the room is 0.66 kW at 32 °C ambient. It uses about 125 liters of water a day, or roughly 1 liters for every kilo of ice. The FM-120KE-50-HC runs on 100 g of R290, which is propane (safety class A3), so the charge belongs on the installation paperwork.
Installation notes
Check two things on board before the FM-120KE-50-HC goes in: room temperature (5 to 40 °C allowed) and water pressure (0.5 to 8 bar, water 5 to 35 °C). Expect roughly 0.66 kW of extra heat in the room from this air-cooled unit. The matching water filter for 125 kg a day is the 4HC-H single system. Supply, water and fixing for the FM-120KE-50-HC are confirmed per vessel when we quote, since the figures above describe Hoshizaki's standard build.
Key features of the FM-120KE-50-HC
- 125 kg of flake ice per 24 hours
- 57 kg built-in storage bin
- Air-cooled condenser
- R290 refrigerant
- Exterior: Stainless steel AISI 441, Galvanized steel (Rear)
- Accessories included: Installation kit, Scoop
FM-120KE-50-HC technical specifications
| Manufacturer | Hoshizaki |
|---|---|
| Model | FM-120KE-50-HC |
| Product type | Flake Ice Maker |
| Series | FM series |
| Configuration | Self-Contained |
| Manufacturer item number | F115-C127 |
| Country of origin | UK |
| Accessories included | Installation kit, Scoop |
| Compatible water filters | 4HC-H Single Water Filter, 4HC Replacement Cartridge |
| Width | 940 mm |
| Width (packed) | 1046 mm |
| Depth | 600 mm |
| Depth (packed) | 706 mm |
| Height | 800 mm |
| Height (packed) | 887 mm |
| Volume (packed) | 0.655 m³ |
| Legs | Including legs at 89 mm |
| Electrical consumption | 0.355 kW |
| Energy consumption | 0.355 kWh |
| Ambient temperature (maximum) | 40 °C |
| Ambient temperature (minimum) | 5 °C |
| Voltage tolerance | ±6% |
| Water supply pressure (maximum) | 0.8MPa (8 bar) |
| Water supply pressure (minimum) | 0.05MPa (0.5 bar) |
| Water supply temperature (maximum) | 35 °C |
| Water supply temperature (minimum) | 5 °C |
| Electrical circuit breaker protection | 6 A |
| Exterior | Stainless steel AISI 441, Galvanized steel (Rear) |
| Gross weight | 88 kg |
| Net weight | 76 kg |
| Heat rejection (AT 32 °C, WT 21 °C) | 0.655 kW |
| Power supply | 1/220 - 240V/50Hz |
| Storage bin capacity | 57 kg |
| Volume, gross | 0.655 l |
| Cooling system | Air Cooled |
| Ice type | Flake |
| Ice production (kg/24h) | 125 kg |
| Water consumption (m³/24h) | 0.125 m³ |
| CO2 equivalent | 0.3 kg |
| GWP | 3 GWP |
| Refrigerant charge | 100 g |
| Refrigerant type | R290 |
Also listed under
Questions about the FM-120KE-50-HC
What is the daily output of the Hoshizaki FM-120KE-50-HC?
Up to 125 kg of flake ice in 24 hours, about 5.2 kg an hour. Real output drops as room and water temperatures rise.
How is the FM-120KE-50-HC cooled?
It is air-cooled.
What water supply does the FM-120KE-50-HC need?
Water at 5 to 35 °C and 0.5 to 8 bar, with the 4HC-H single filter system.
Where the FM-120KE-50-HC is used
Hoshizaki, manufacturer of the FM-120KE-50-HC
Hoshizaki: Japanese maker of commercial ice machines, supplied through Hoshizaki Europe with cube, crescent, flake, nugget, cylinder and ball ice makers, ice and water dispensers and sushi display cases. Configured to order — tell us the vessel and the supply voltage and frequency, and we will quote the correct build.
All Hoshizaki equipmentManuals and documents for the FM-120KE-50-HC
- Spec sheet
- Instruction manual (1)
- Instruction manual (2)
- Installation manual
- Declaration of conformity
Documents are published by the manufacturer for the standard model. We confirm the build, supply and installation details for your vessel with the quotation.
