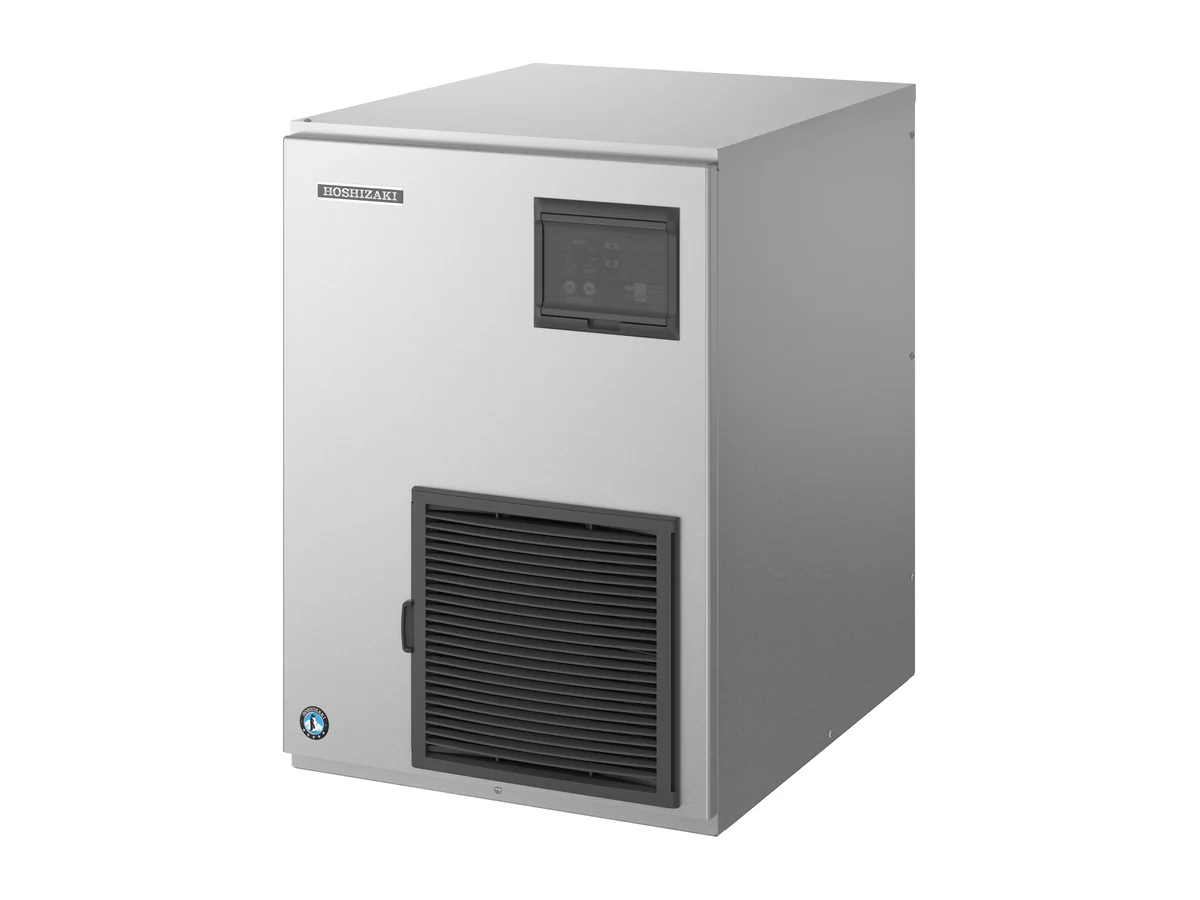

Hoshizaki Flake Ice Maker FM-150AKE-HC-SB – Modular, Air-cooled, 150 kg/24h
150 kg/24h flake ice from the Hoshizaki FM-150AKE-HC-SB, a modular air-cooled unit. Full specs and manuals.
| Manufacturer | Hoshizaki |
|---|---|
| Model | FM-150AKE-HC-SB |
| Product type | Flake Ice Maker |
| Series | FM series |
| Configuration | Modular |
Hoshizaki Flake Ice Maker FM-150AKE-HC-SB Overview
The FM-150AKE-HC-SB is a modular flake head. It makes up to 150 kg of flake ice a day but has no bin of its own, so it is always ordered with a storage bin (Hoshizaki lists the B-140SB, B-210SB, B-340SB). That works out to roughly 6.2 kg an hour.
Power, water and size
The cabinet is 560 mm wide, 700 mm deep and 780 mm tall, and weighs 63 kg. Electrically it needs single-phase 220-240 V 50 Hz, drawing 0.405 kW, within ±6%. Heat released into the room is 0.8 kW at 32 °C ambient. Water consumption comes to 150 liters per 24 hours, or roughly 1 liters for every kilo of ice. The FM-150AKE-HC-SB runs on 110 g of R290, which is propane (safety class A3), so the charge belongs on the installation paperwork.
Installation notes
Keep the room around the FM-150AKE-HC-SB between 5 and 40 °C and the incoming water between 5 and 35 °C at 0.5 to 8 bar. The condenser blows about 0.8 kW of warm air into the room, which a bar with poor ventilation will notice. For water treatment, fit the 4HC-H single filter ahead of the FM-150AKE-HC-SB. For mounting the FM-150AKE-HC-SB on a bin, Hoshizaki lists TK-30 for B-140SB, B-210SB, B340SB (optional, not required), TK-8D for B-210SB, TK-8D + TK18D for B-340SB. Supply, water and fixing for the FM-150AKE-HC-SB are confirmed per vessel when we quote, since the figures above describe Hoshizaki's standard build.
Key features of the FM-150AKE-HC-SB
- 150 kg of flake ice per 24 hours
- Air-cooled condenser
- R290 refrigerant
- Exterior: Stainless steel AISI 441, Galvanized steel (Rear)
- Accessories included: Installation kit
- Compatible bins: B-140SB, B-210SB, B-340SB
FM-150AKE-HC-SB technical specifications
| Manufacturer | Hoshizaki |
|---|---|
| Model | FM-150AKE-HC-SB |
| Product type | Flake Ice Maker |
| Series | FM series |
| Configuration | Modular |
| Manufacturer item number | F128-C101 |
| Country of origin | UK |
| Accessories included | Installation kit |
| Compatible water filters | 4HC-H Single Water Filter, 4HC Replacement Cartridge |
| Width | 560 mm |
| Width (packed) | 665 mm |
| Depth | 700 mm |
| Depth (packed) | 820 mm |
| Height | 780 mm |
| Height (packed) | 950 mm |
| Volume (packed) | 0.518 m³ |
| Electrical consumption | 0.405 kW |
| Energy consumption | 0.405 kWh |
| Ambient temperature (maximum) | 40 °C |
| Ambient temperature (minimum) | 5 °C |
| Voltage tolerance | ±6% |
| Water supply pressure (maximum) | 0.8MPa (8 bar) |
| Water supply pressure (minimum) | 0.05MPa (0.5 bar) |
| Water supply temperature (maximum) | 35 °C |
| Water supply temperature (minimum) | 5 °C |
| Exterior | Stainless steel AISI 441, Galvanized steel (Rear) |
| Gross weight | 70 kg |
| Net weight | 63 kg |
| Heat rejection (AT 32 °C, WT 21 °C) | 0.8 kW |
| Power supply | 1/220 - 240V/50Hz |
| Cooling system | Air Cooled |
| Ice type | Flake |
| Ice production (kg/24h) | 150 kg |
| Water consumption (m³/24h) | 0.15 m³ |
| Compatible storage bins | B-140SB, B-210SB, B-340SB |
| CO2 equivalent | 0.33 kg |
| GWP | 3 GWP |
| Refrigerant charge | 110 g |
| Refrigerant type | R290 |
| Top kits | TK-30 for B-140SB, B-210SB, B340SB (optional, not required), TK-8D for B-210SB, TK-8D + TK18D for B-340SB |
Also listed under
Questions about the FM-150AKE-HC-SB
How much ice does the FM-150AKE-HC-SB make per day?
Up to 150 kg of flake ice in 24 hours, about 6.2 kg an hour. Real output drops as room and water temperatures rise.
Is the FM-150AKE-HC-SB air-cooled or water-cooled?
It is air-cooled.
What water supply does the FM-150AKE-HC-SB need?
Water at 5 to 35 °C and 0.5 to 8 bar, with the 4HC-H single filter system.
Where the FM-150AKE-HC-SB is used
Hoshizaki, manufacturer of the FM-150AKE-HC-SB
Hoshizaki: Japanese maker of commercial ice machines, supplied through Hoshizaki Europe with cube, crescent, flake, nugget, cylinder and ball ice makers, ice and water dispensers and sushi display cases. Configured to order — tell us the vessel and the supply voltage and frequency, and we will quote the correct build.
All Hoshizaki equipmentManuals and documents for the FM-150AKE-HC-SB
Documents are published by the manufacturer for the standard model. We confirm the build, supply and installation details for your vessel with the quotation.
