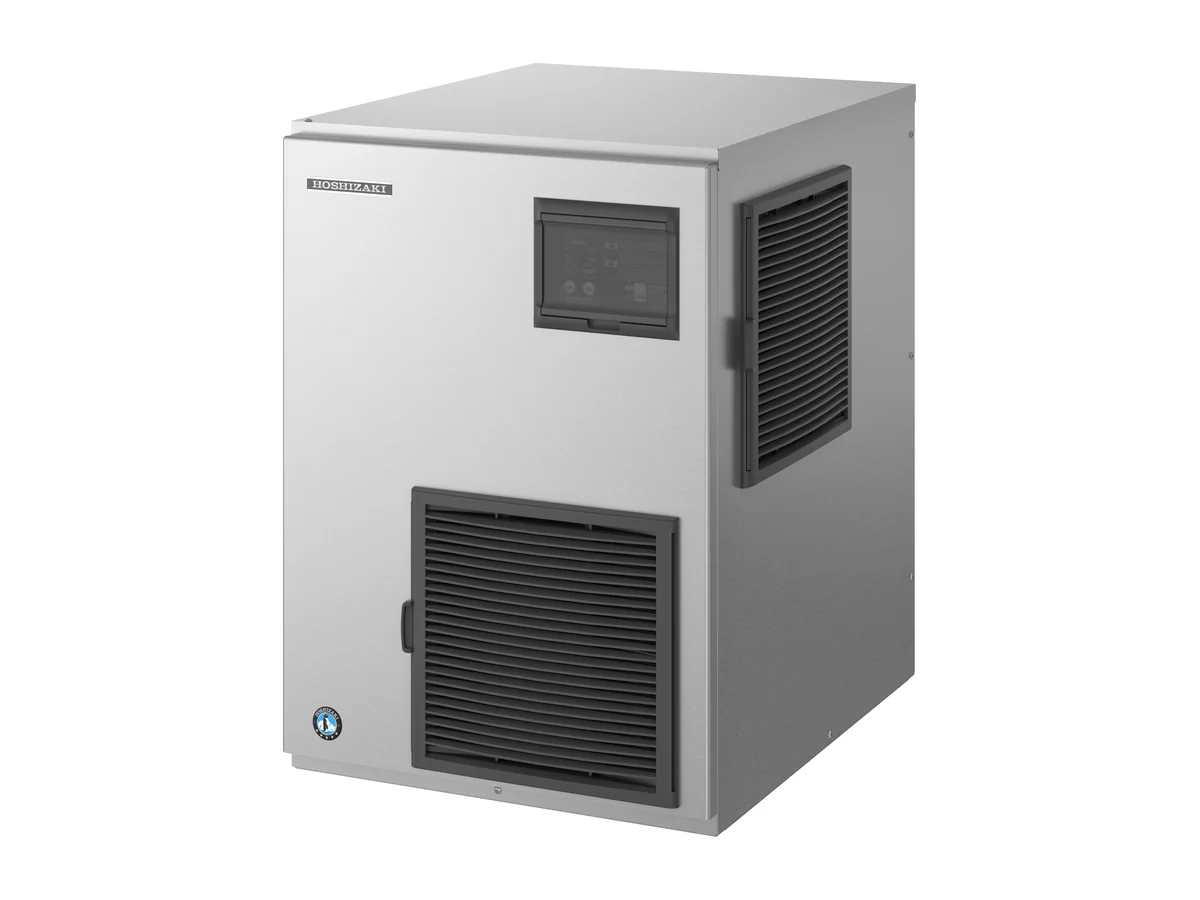

Hoshizaki Flake Ice Maker FM-480AKE-HC-SB – Modular, Air-cooled, 450 kg/24h
The Hoshizaki FM-480AKE-HC-SB makes 450 kg of flake ice a day (modular, air-cooled). Data, manuals and marine quotation.
| Manufacturer | Hoshizaki |
|---|---|
| Model | FM-480AKE-HC-SB |
| Product type | Flake Ice Maker |
| Series | FM series |
| Configuration | Modular |
Hoshizaki Flake Ice Maker FM-480AKE-HC-SB Overview

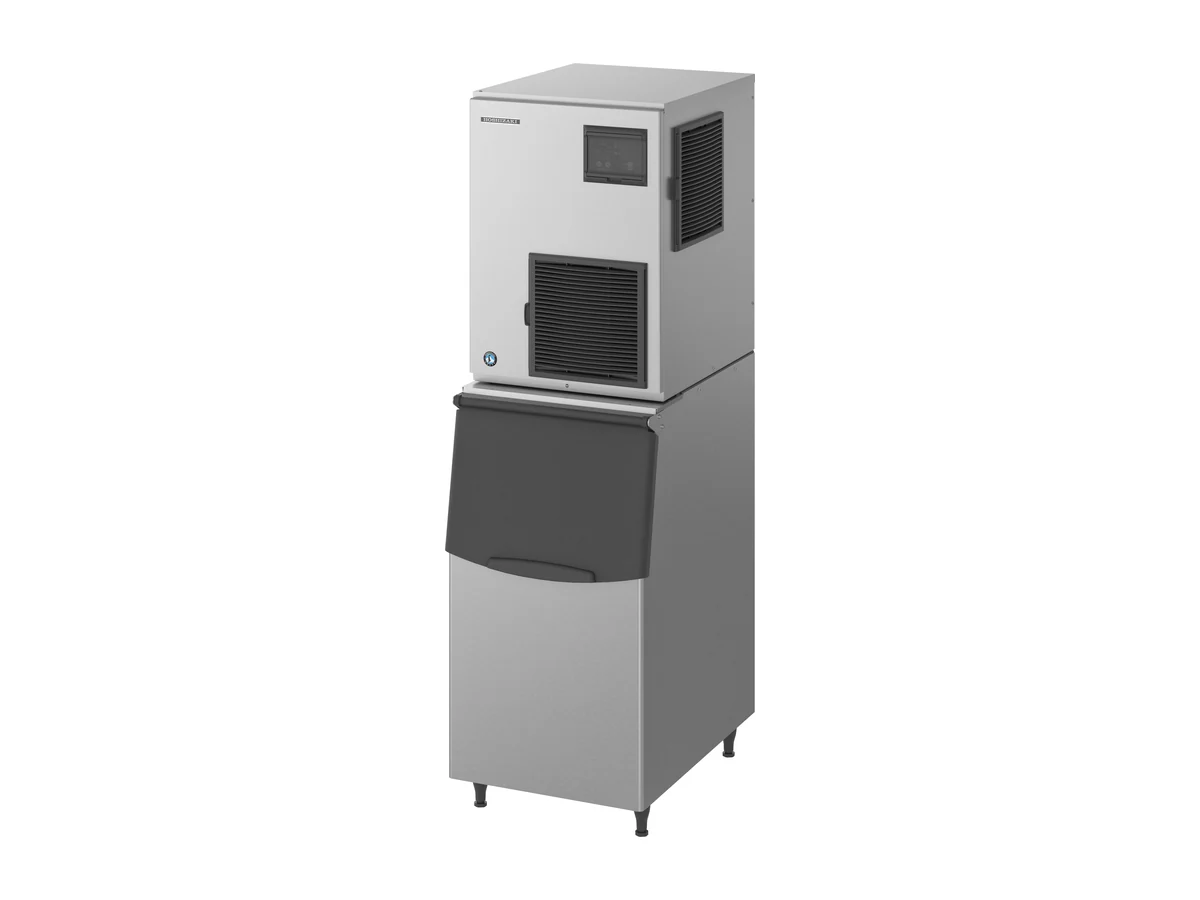

Up to 450 kg of flake ice a day from a air-cooled head that sits on a separate bin: the FM-480AKE-HC-SB is built for ice rooms and busy bars rather than a counter. Hoshizaki pairs the FM-480AKE-HC-SB with the B-140SB, B-210SB, B-340SB. Spread over a day, it is about 18.8 kg per hour.
Technical details
It measures 560 x 700 x 780 mm (W x D x H) and weighs 92 kg empty. Electrically it needs single-phase 220-240 V 50 Hz, drawing 1.1 kW, within ±6%. Heat released into the room is 2.19 kW at 32 °C ambient. It uses about 450 liters of water a day, or roughly 1 liters for every kilo of ice. Inside the FM-480AKE-HC-SB is a 145 g R290 charge, and R290 is propane rated A3 for flammability.
Where the FM-480AKE-HC-SB fits
The FM-480AKE-HC-SB is rated for rooms at 5 to 40 °C, with feed water between 5 and 35 °C at 0.5 to 8 bar. The condenser blows about 2.19 kW of warm air into the room, which a bar with poor ventilation will notice. Hoshizaki matches the FM-480AKE-HC-SB with the 4HC-H twin filter system. For mounting the FM-480AKE-HC-SB on a bin, Hoshizaki lists TK-30 for B-140SB, B-210SB, B340SB (optional, not required), TK-8D for B-210SB, TK-8D + TK18D for B-340SB. Send us the supply details and where the FM-480AKE-HC-SB will stand and we will confirm the rest with Hoshizaki.
Key features of the FM-480AKE-HC-SB
- 450 kg of flake ice per 24 hours
- Air-cooled condenser
- R290 refrigerant
- Exterior: Stainless steel AISI 441, Galvanized steel (Rear)
- Accessories included: Installation kit
- Compatible bins: B-140SB, B-210SB, B-340SB
FM-480AKE-HC-SB technical specifications
| Manufacturer | Hoshizaki |
|---|---|
| Model | FM-480AKE-HC-SB |
| Product type | Flake Ice Maker |
| Series | FM series |
| Configuration | Modular |
| Manufacturer item number | F087-C101 |
| Country of origin | UK |
| Accessories included | Installation kit |
| Compatible water filters | 4HC-H Twin Water Filter, 4HC Replacement Cartridge |
| Width | 560 mm |
| Width (packed) | 655 mm |
| Depth | 700 mm |
| Depth (packed) | 820 mm |
| Height | 780 mm |
| Height (packed) | 950 mm |
| Volume (packed) | 0.5102 m³ |
| Electrical consumption | 1.1 kW |
| Ambient temperature (maximum) | 40 °C |
| Ambient temperature (minimum) | 5 °C |
| Voltage tolerance | ±6% |
| Water supply pressure (maximum) | 0.8MPa (8 bar) |
| Water supply pressure (minimum) | 0.05MPa (0.5 bar) |
| Water supply temperature (maximum) | 35 °C |
| Water supply temperature (minimum) | 5 °C |
| Exterior | Stainless steel AISI 441, Galvanized steel (Rear) |
| Gross weight | 99 kg |
| Net weight | 92 kg |
| Heat rejection (AT 32 °C, WT 21 °C) | 2.19 kW |
| Power supply | 1/220 - 240V/50Hz |
| Cooling system | Air Cooled |
| Ice type | Flake |
| Ice production (kg/24h) | 450 kg |
| Water consumption (m³/24h) | 0.45 m³ |
| Compatible storage bins | B-140SB, B-210SB, B-340SB |
| CO2 equivalent | 0.435 kg |
| GWP | 3 GWP |
| Refrigerant charge | 145 g |
| Refrigerant type | R290 |
| Top kits | TK-30 for B-140SB, B-210SB, B340SB (optional, not required), TK-8D for B-210SB, TK-8D + TK18D for B-340SB |
Also listed under
Questions about the FM-480AKE-HC-SB
What is the daily output of the Hoshizaki FM-480AKE-HC-SB?
Up to 450 kg of flake ice in 24 hours, about 18.8 kg an hour. Real output drops as room and water temperatures rise.
How is the FM-480AKE-HC-SB cooled?
It is air-cooled.
What water supply does the FM-480AKE-HC-SB need?
Water at 5 to 35 °C and 0.5 to 8 bar, with the 4HC-H twin filter system.
Where the FM-480AKE-HC-SB is used
Hoshizaki, manufacturer of the FM-480AKE-HC-SB
Hoshizaki: Japanese maker of commercial ice machines, supplied through Hoshizaki Europe with cube, crescent, flake, nugget, cylinder and ball ice makers, ice and water dispensers and sushi display cases. Configured to order — tell us the vessel and the supply voltage and frequency, and we will quote the correct build.
All Hoshizaki equipmentManuals and documents for the FM-480AKE-HC-SB
Documents are published by the manufacturer for the standard model. We confirm the build, supply and installation details for your vessel with the quotation.
