Model FM-80KE-HC
Hoshizaki
Hoshizaki

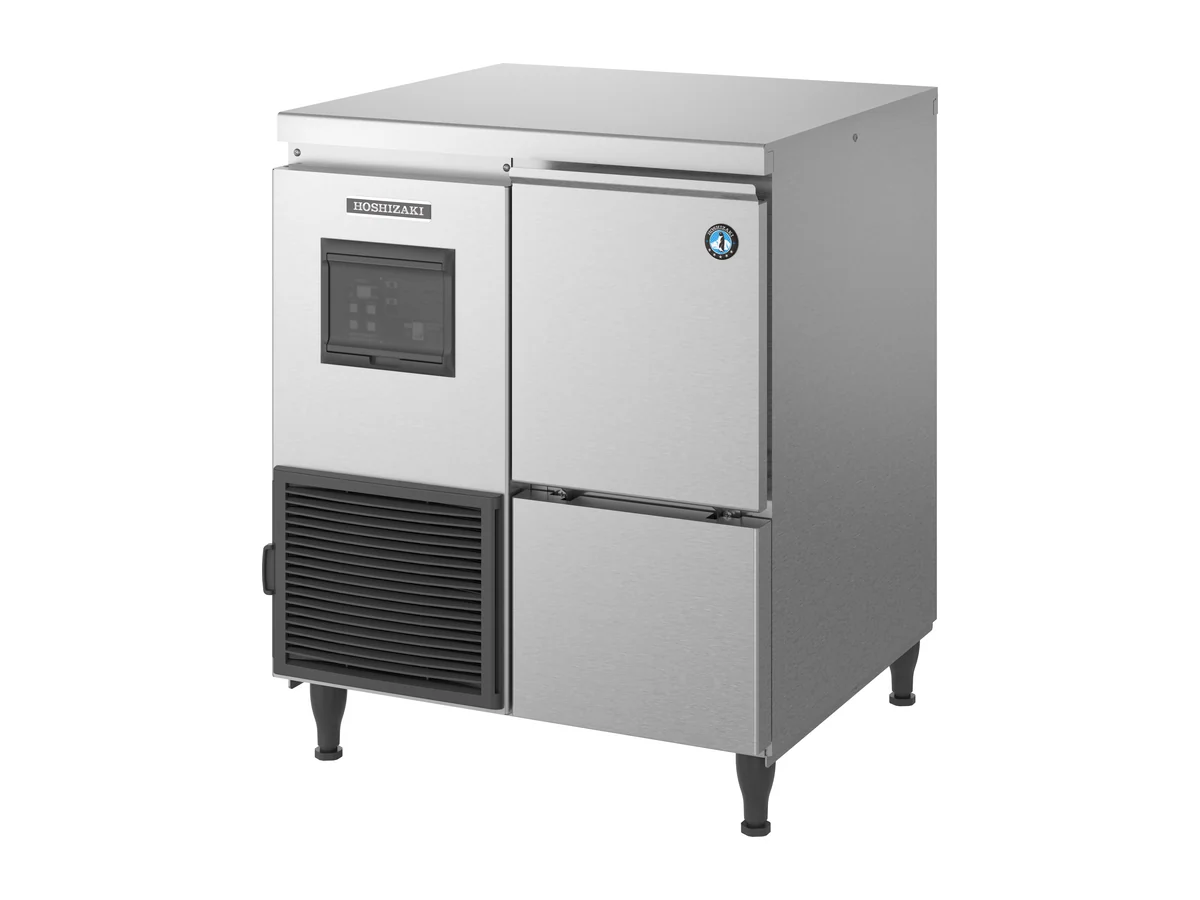

Hoshizaki Flake Ice Maker FM-80KE-HC – Self-Contained, Air-cooled, 85 kg/24h
Hoshizaki FM-80KE-HC: self-contained air-cooled flake ice maker, 85 kg a day with a 26 kg bin. Specs, manuals and quotes for ships and yachts.
| Manufacturer | Hoshizaki |
|---|---|
| Model | FM-80KE-HC |
| Product type | Flake Ice Maker |
| Series | FM series |
| Configuration | Self-Contained |
Hoshizaki Flake Ice Maker FM-80KE-HC Overview
With 85 kg of flake ice a day and a 26 kg storage bin, the FM-80KE-HC is a self-contained air-cooled flake machine for bars, pantries and small galleys. Averaged out, the machine turns out about 3.5 kg an hour. From empty, its 26 kg bin takes about 7.3 hours to fill.
Specs worth checking
It measures 640 x 600 x 711 mm (W x D x H) before legs (add 87-122mm) and weighs 65 kg empty. Power draw is 0.27 kW on single-phase 220-240 V 50 Hz, within ±6%, on a 6 A breaker. Heat released into the room is 0.45 kW at 32 °C ambient. Water consumption comes to 85 liters per 24 hours, or roughly 1 liters for every kilo of ice. Refrigerant is 63 g of flammable R290 (A3), a figure the yard or class surveyor will ask for.
Fitting it on a vessel
Keep the room around the FM-80KE-HC between 5 and 40 °C and the incoming water between 5 and 35 °C at 0.5 to 8 bar. Being air-cooled, the FM-80KE-HC warms the space it stands in by about 0.45 kW; in a small pantry that is worth planning for. The matching water filter for 85 kg a day is the 4HC-H single system. Supply, water and fixing for the FM-80KE-HC are confirmed per vessel when we quote, since the figures above describe Hoshizaki's standard build.
Key features of the FM-80KE-HC
- 85 kg of flake ice per 24 hours
- 26 kg built-in storage bin
- Air-cooled condenser
- R290 refrigerant
- Exterior: Stainless steel AISI 441, Galvanized steel (Rear)
- Accessories included: Installation kit, Scoop
FM-80KE-HC technical specifications
| Manufacturer | Hoshizaki |
|---|---|
| Model | FM-80KE-HC |
| Product type | Flake Ice Maker |
| Series | FM series |
| Configuration | Self-Contained |
| Manufacturer item number | F114 |
| Country of origin | UK |
| Accessories included | Installation kit, Scoop |
| Compatible water filters | 4HC-H Single Water Filter, 4HC Replacement Cartridge |
| Width | 640 mm |
| Width (packed) | 746 mm |
| Depth | 600 mm |
| Depth (packed) | 706 mm |
| Height | 711 mm |
| Height (packed) | 887 mm |
| Volume (packed) | 0.4672 m³ |
| Legs | For legs add 87-122mm |
| Electrical consumption | 0.27 kW |
| Ambient temperature (maximum) | 40 °C |
| Ambient temperature (minimum) | 5 °C |
| Voltage tolerance | ±6% |
| Water supply pressure (maximum) | 0.8MPa (8 bar) |
| Water supply pressure (minimum) | 0.05MPa (0.5 bar) |
| Water supply temperature (maximum) | 35 °C |
| Water supply temperature (minimum) | 5 °C |
| Electrical circuit breaker protection | 6 A |
| Exterior | Stainless steel AISI 441, Galvanized steel (Rear) |
| Gross weight | 75 kg |
| Net weight | 65 kg |
| Heat rejection (AT 32 °C, WT 21 °C) | 0.45 kW |
| Power supply | 1/220 - 240V/50Hz |
| Storage bin capacity | 26 kg |
| Cooling system | Air Cooled |
| Ice type | Flake |
| Ice production (kg/24h) | 85 kg |
| Water consumption (m³/24h) | 0.085 m³ |
| CO2 equivalent | 0.189 kg |
| GWP | 3 GWP |
| Refrigerant charge | 63 g |
| Refrigerant type | R290 |
Also listed under
Questions about the FM-80KE-HC
How much ice does the FM-80KE-HC make per day?
Up to 85 kg of flake ice in 24 hours, about 3.5 kg an hour. Real output drops as room and water temperatures rise.
Is the FM-80KE-HC air-cooled or water-cooled?
It is air-cooled.
What water supply does the FM-80KE-HC need?
Water at 5 to 35 °C and 0.5 to 8 bar, with the 4HC-H single filter system.
Where the FM-80KE-HC is used
Hoshizaki, manufacturer of the FM-80KE-HC
Hoshizaki: Japanese maker of commercial ice machines, supplied through Hoshizaki Europe with cube, crescent, flake, nugget, cylinder and ball ice makers, ice and water dispensers and sushi display cases. Configured to order — tell us the vessel and the supply voltage and frequency, and we will quote the correct build.
All Hoshizaki equipmentManuals and documents for the FM-80KE-HC
Documents are published by the manufacturer for the standard model. We confirm the build, supply and installation details for your vessel with the quotation.
