Hoshizaki Long Cube Ice Maker IM-65NE-HC-LM103 – Self-Contained, Air-cooled, 39 kg/24h
The Hoshizaki IM-65NE-HC-LM103 makes 39 kg of long cubes a day (self-contained, air-cooled, 26 kg bin). Data, manuals and marine quotation.
| Manufacturer | Hoshizaki |
|---|---|
| Model | IM-65NE-HC-LM103 |
| Product type | Long Cube Ice Maker |
| Series | IM series |
| Configuration | Self-Contained |
Hoshizaki Long Cube Ice Maker IM-65NE-HC-LM103 Overview
The IM-65NE-HC-LM103 makes up to 39 kg of long cubes a day and keeps 26 kg of it in its own bin, so it only needs power, water and a drain to start working. That works out to roughly 1.6 kg an hour. At that rate the 26 kg bin takes around 16 hours to rebuild after a busy service.
Power, water and size
Footprint is 633 x 506 mm with a height of 860 mm before legs (add 90-125 mm); net weight is 51 kg. Power draw is 0.32 kW on single-phase 220-240 V 50 Hz, within ±6%, on a 5 A breaker. Heat released into the room is 0.81 kW at 32 °C ambient. Daily water use is 810 liters, or roughly 20.8 liters for every kilo of ice. Inside the IM-65NE-HC-LM103 is a 105 g R290 charge, and R290 is propane rated A3 for flammability.
Fitting it on a vessel
Keep the room around the IM-65NE-HC-LM103 between 1 and 40 °C and the incoming water between 5 and 35 °C at 0.7 to 8 bar. Being air-cooled, the IM-65NE-HC-LM103 warms the space it stands in by about 0.81 kW; in a small pantry that is worth planning for. For water treatment, fit the 4HC-H single filter ahead of the IM-65NE-HC-LM103. Send us the supply details and where the IM-65NE-HC-LM103 will stand and we will confirm the rest with Hoshizaki.
Key features of the IM-65NE-HC-LM103
- 39 kg of long cubes per 24 hours
- 26 kg built-in storage bin
- Air-cooled condenser
- R290 refrigerant
- Exterior: Stainless steel AISI 441, Galvanized steel (Rear)
- Accessories included: Installation kit, Legs, Scoop
IM-65NE-HC-LM103 technical specifications
| Manufacturer | Hoshizaki |
|---|---|
| Model | IM-65NE-HC-LM103 |
| Product type | Long Cube Ice Maker |
| Series | IM series |
| Configuration | Self-Contained |
| Manufacturer item number | M066-D010 |
| Country of origin | UK |
| Accessories included | Installation kit, Legs, Scoop |
| Compatible water filters | 4HC-H Single Water Filter, 4HC Replacement Cartridge |
| Width | 633 mm |
| Width (packed) | 735 mm |
| Depth | 506 mm |
| Depth (packed) | 570 mm |
| Height | 860 mm |
| Height (packed) | 1012 mm |
| Volume (packed) | 0.424 m³ |
| Legs | for legs add 90-125 mm |
| Electrical consumption | 0.32 kW |
| Energy consumption | 0.32 kWh |
| Ambient temperature (maximum) | 40 °C |
| Ambient temperature (minimum) | 1 °C |
| Voltage tolerance | ±6% |
| Water supply pressure (maximum) | 0.8MPa (8 bar) |
| Water supply pressure (minimum) | 0,07MPa (0.7 bar) |
| Water supply temperature (maximum) | 35 °C |
| Water supply temperature (minimum) | 5 °C |
| Electrical circuit breaker protection | 5 A |
| Exterior | Stainless steel AISI 441, Galvanized steel (Rear) |
| Gross weight | 61 kg |
| Net weight | 51 kg |
| Heat rejection (AT 32 °C, WT 21 °C) | 0.815 kW |
| Power supply | 1/220 - 240V/50Hz |
| Storage bin capacity | 26 kg |
| Volume, gross | 0.424 l |
| Cooling system | Air Cooled |

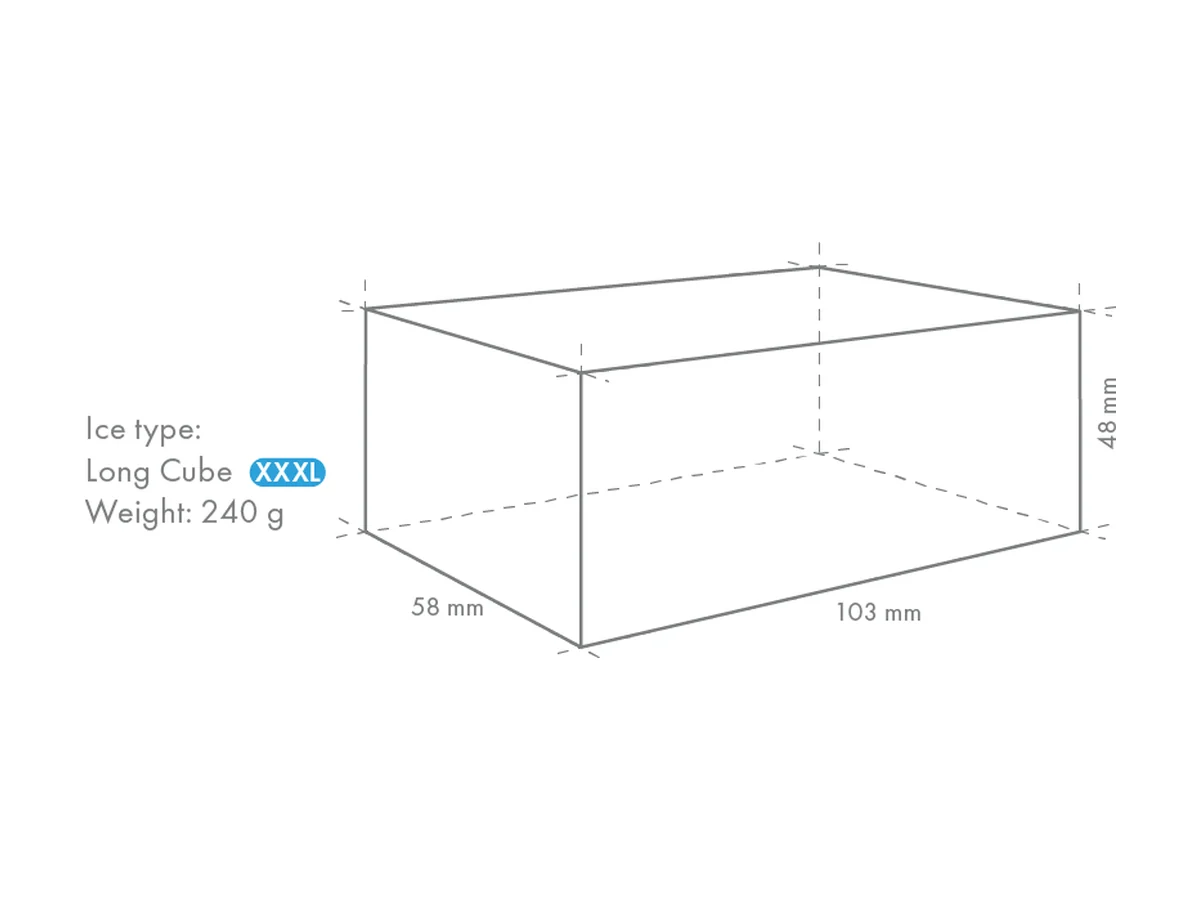

| Ice type | XXXL Cube - LM103 |
| Ice production (kg/24h) | 39 kg |
| Water consumption (m³/24h) | 0.81 m³ |
| CO2 equivalent | 0.315 kg |
| GWP | 3 GWP |
| Refrigerant charge | 105 g |
| Refrigerant type | R290 |
| Note | This type of icemaker is on special order only. Please take longer lead times into consideration. |
Also listed under
Questions about the IM-65NE-HC-LM103
How much ice does the IM-65NE-HC-LM103 make per day?
Up to 39 kg of long cubes in 24 hours, about 1.6 kg an hour. Real output drops as room and water temperatures rise.
How is the IM-65NE-HC-LM103 cooled?
It is air-cooled.
What water supply does the IM-65NE-HC-LM103 need?
Water at 5 to 35 °C and 0.7 to 8 bar, with the 4HC-H single filter system.
Where the IM-65NE-HC-LM103 is used
Hoshizaki, manufacturer of the IM-65NE-HC-LM103
Hoshizaki: Japanese maker of commercial ice machines, supplied through Hoshizaki Europe with cube, crescent, flake, nugget, cylinder and ball ice makers, ice and water dispensers and sushi display cases. Configured to order — tell us the vessel and the supply voltage and frequency, and we will quote the correct build.
All Hoshizaki equipmentManuals and documents for the IM-65NE-HC-LM103
Documents are published by the manufacturer for the standard model. We confirm the build, supply and installation details for your vessel with the quotation.
