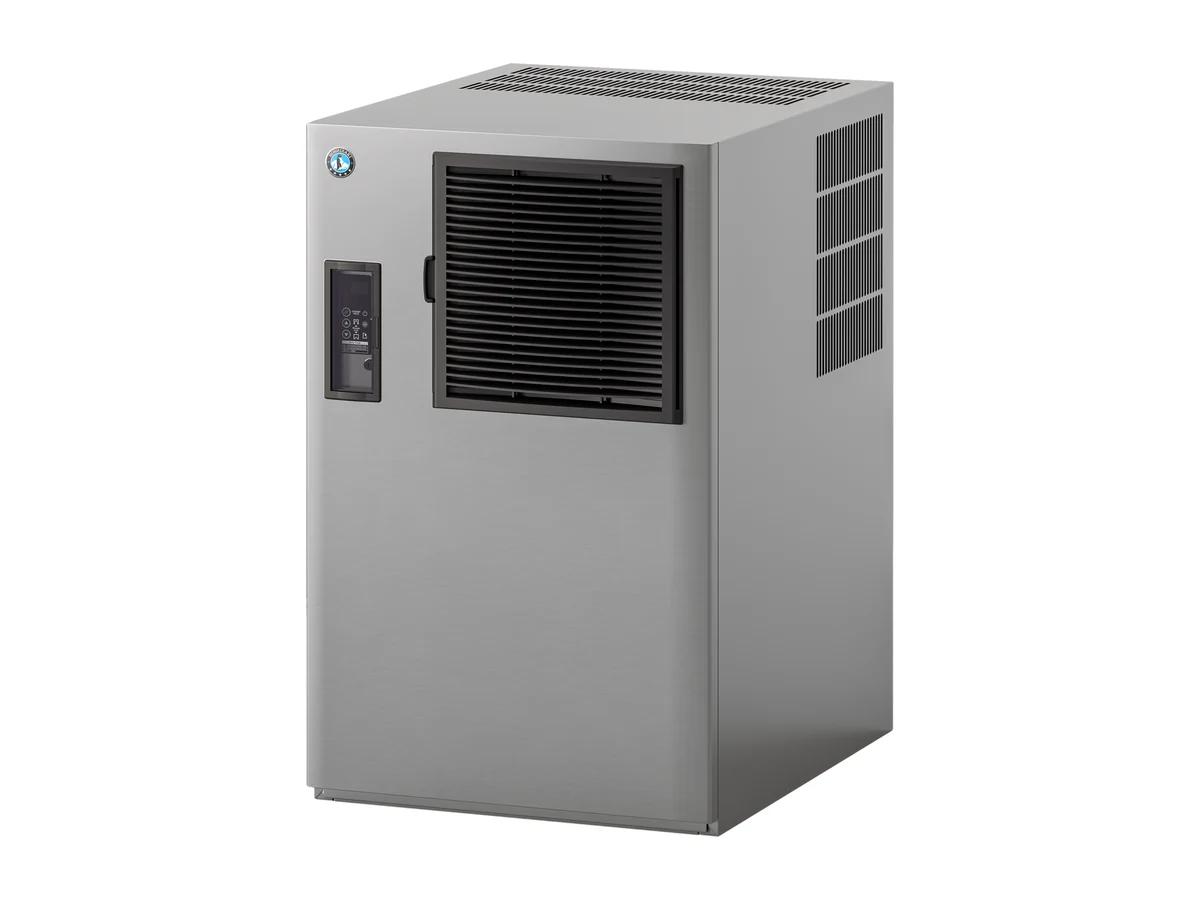

Hoshizaki Cube Ice Maker IM-130APE – Modular, Air-cooled, 125 kg/24h, L Cube
Hoshizaki IM-130APE: modular air-cooled cube ice maker, up to 125 kg/24h, R290, 220-240 V 50 Hz. Supplied for ships, yachts and offshore galleys and bars.
| Manufacturer | Hoshizaki |
|---|---|
| Model | IM-130APE |
| Product type | Cube Ice Maker |
| Series | IM Cube |
| Configuration | Modular |
Hoshizaki Cube Ice Maker IM-130APE Overview
The Hoshizaki IM-130APE is a modular air-cooled cube ice maker producing up to 125 kg of cubes in 24 hours. In the IM CUBE range it is the Basic Cube and it makes the L cube (28 × 28 × 32 mm), the standard size with no suffix. As a modular head it has no bin of its own and sits on a separate storage bin: Hoshizaki pairs the IM-130APE with the B-140SB, B-210SB, B-340SB; top kits: TK-30 for B-140SB, B-210SB, B340SB (optional, not required), TK-8D for B-210SB, TK-8D + TK18D for B-340SB.
Related models
The same machine is listed as IM-130APE-U (UltraCUBE). Other cube sizes of the IM-130APE: IM-130APE-23, M cube, 100 kg a day.
Performance and connections
The IM-130APE measures 560 × 700 × 880 mm (W × D × H) and weighs 68 kg net. Electrical consumption is 0.58 kW and heat rejection 1.38 kW at 32 °C ambient and 21 °C water, with 0.52 m³ of water used per 24 hours. The IM-130APE runs on 130 g of R290, GWP 3. R290 is a natural refrigerant classified A3, higher flammability, so the charge belongs in the installation specification. The published supply for the IM-130APE is single phase 220-240 V 50 Hz, with a voltage tolerance of ±6% and a 5 A circuit breaker. Functions listed by Hoshizaki: automated cleaning.
On board
Hoshizaki gives operating limits of ambient temperatures from 1 to 40 °C, water supply temperatures from 5 to 35 °C and water pressure from 0.7 to 8 bar, which is what the space and the vessel's fresh water system have to meet for the IM-130APE. Being air-cooled, it rejects its heat into the space, so the ventilation of the galley or bar has to take it. For water treatment Hoshizaki pairs it with the 4HC-H twin water filter system and its 4HC replacement cartridges. On a vessel the IM-130APE is specified like any galley appliance: supply voltage and frequency, water inlet and drain, ventilation and fixing. This page carries Hoshizaki's published data for the standard model, and we confirm the marine installation details with the quotation.
Send us the vessel type, the supply voltage and frequency and where the IM-130APE will stand, and we will quote it with the matching water filter and storage bin.
Key features of the IM-130APE
- 125 kg of cubes per 24 hours
- Air-cooled condenser
- R290 refrigerant
- Exterior: Stainless steel AISI 441, Galvanized steel (Rear)
- Automated cleaning
- Accessories included: Ice chute, Installation kit, Scoop
- Compatible bins: B-140SB, B-210SB, B-340SB
IM-130APE technical specifications
| Manufacturer | Hoshizaki |
|---|---|
| Model | IM-130APE |
| Product type | Cube Ice Maker |
| Series | IM Cube |
| Configuration | Modular |
| Manufacturer item number | M117 |
| Country of origin | UK |
| Accessories included | Ice chute, Installation kit, Scoop |
| Compatible water filters | 4HC-H Twin Water Filter, 4HC Replacement Cartridge |
| Width | 560 mm |
| Width (packed) | 665 mm |
| Depth | 700 mm |
| Depth (packed) | 820 mm |
| Height | 880 mm |
| Height (packed) | 1054 mm |
| Volume (packed) | 0.5747 m³ |
| Electrical consumption | 0.58 kW |
| Ambient temperature (maximum) | 40 °C |
| Ambient temperature (minimum) | 1 °C |
| Voltage tolerance | ±6% |
| Water supply pressure (maximum) | 0.8MPa (8 bar) |
| Water supply pressure (minimum) | 0.07MPa (0.7 bar) |
| Water supply temperature (maximum) | 35 °C |
| Water supply temperature (minimum) | 5 °C |
| Functions | Automated cleaning |
| Electrical circuit breaker protection | 5 A |
| Exterior | Stainless steel AISI 441, Galvanized steel (Rear) |
| Gross weight | 79 kg |
| Net weight | 68 kg |
| Heat rejection (AT 32 °C, WT 21 °C) | 1.38 kW |
| Power supply | 1/220 - 240V/50Hz |
| Cooling system | Air Cooled |
| Ice type | Large cubes, Standard |
| Ice production (kg/24h) | 125 kg |
| Water consumption (m³/24h) | 0.52 m³ |
| Compatible storage bins | B-140SB, B-210SB, B-340SB |
| CO2 equivalent | 0.39 kg |
| GWP | 3 GWP |
| Refrigerant charge | 130 g |
| Refrigerant type | R290 |
| Top kits | TK-30 for B-140SB, B-210SB, B340SB (optional, not required), TK-8D for B-210SB, TK-8D + TK18D for B-340SB |
| Note | Water cooled units should have the condenser circuit connected to a self-contained recirculating system. It is likely that the connection of such units to the mains water supply may be a contravention of local water authority by-laws. |
Also listed under
Questions about the IM-130APE
How much ice does the Hoshizaki IM-130APE make?
Up to 125 kg of cubes in 24 hours. Actual output depends on ambient and water temperature.
What supply and water connection does the IM-130APE need?
Hoshizaki lists the IM-130APE for single phase 220-240 V 50 Hz, with a voltage tolerance of ±6% and a 5 A circuit breaker. Hoshizaki gives operating limits of ambient temperatures from 1 to 40 °C, water supply temperatures from 5 to 35 °C and water pressure from 0.7 to 8 bar, which is what the space and the vessel's fresh water system have to meet for the IM-130APE.
Can the IM-130APE be installed on a ship or yacht?
Yes. We supply it for vessels and confirm the supply voltage and frequency, water pressure, drain and fixing against the vessel at quotation. The published data is for the standard model.
Where the IM-130APE is used
Hoshizaki, manufacturer of the IM-130APE
Hoshizaki — Japanese maker of commercial ice machines, supplied through Hoshizaki Europe with cube, crescent, flake, nugget, cylinder and ball ice makers, ice and water dispensers and sushi display cases. Configured to order — tell us the vessel and the supply voltage and frequency, and we will quote the correct build.
All Hoshizaki equipmentManuals and documents for the IM-130APE
Documents are published by the manufacturer for the standard model. We confirm the build, supply and installation details for your vessel with the quotation.
